BONSAI

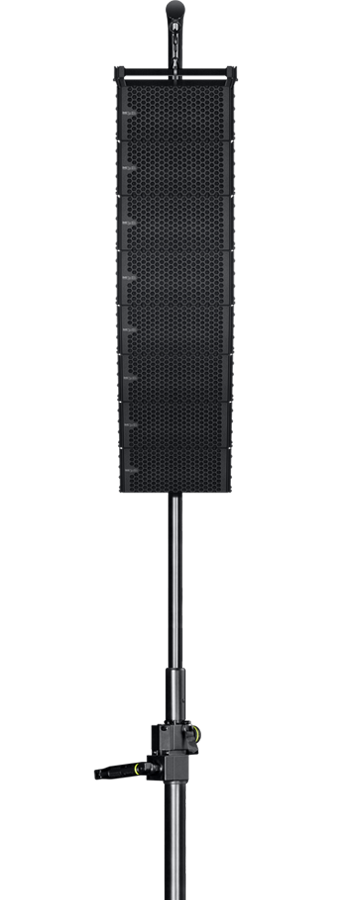

The Bonsai is the first “Line Array” system reduced to scale with all the miniature details.
This system is designed for installations and PA.
INCREDIBLE SPL
The Bonsai incorporates two 3″ speakers with a real power of 60W AES. These mini-transducers reproduce frequencies from 150 Hz to 20 kHz, with a very high SPL for their size.
ANYWHERE
The Bonsai is a mini “Line Array” system that can be installed just like a traditional one, in a bar, in a house of worship or in a fashion store. It is an excellent solution for small concerts in a club or for DJs. It is a really vertical alignment system that offer more energy than a conventional small size system.
CUSTOM SOLUTION
Bonsai is a new concept that revolutionized the PA and installation market. It is discreet, elegant, small, versatile and with all sub-bass and amplification accessories. Its installation is very easy, it allows to orientate the vertical dispersion pattern since everything is adjustable once installed, box by box or in the bumper.
HIGH-END MATERIALS
All materials are selected to provide the best and clearest live sound.
CERTIFIED METAL
BIRCH PLYWOOD
| Transducers | 2 X 3″´ |
| Coverage | 60° AXL |
| Nominal impedance | 16Ω |
| Power AES | 60W |
| Maximun Peak SPL | 119 dB SPL |
| Frecuency Range | 150 Hz to 20 kHz |
| Sensibility (1 W@ 1m) | 1w @ 1m: 94 dB four units |
| Weigth | 1.9 Kg |
| Enclosure Geometry | Trapezoidal |
| Angle adjustment | 1º x 1º |
| Dimensions (WxHxD) | 197 x 93 x 130 mm. |
| Enclosure Material | LAP wooden / H 1O mm. |
| Rigging | Steel |
| Finish | – |
| Colour | Black |
| Connections | 2 x BNC |

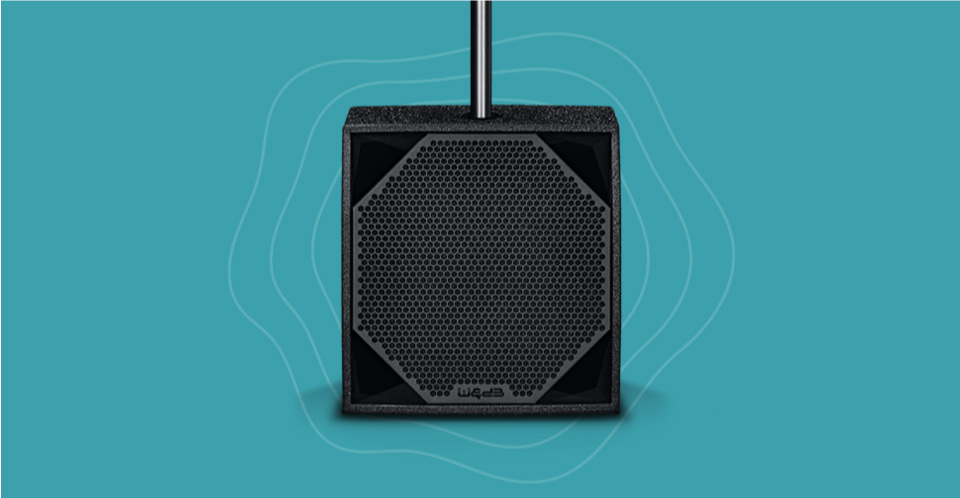

| Subwoofer | 1 x 18” or 1 x 15″ (Beyma) |
| Amplification | POWERSOFT + DSP POWERSOFT |
